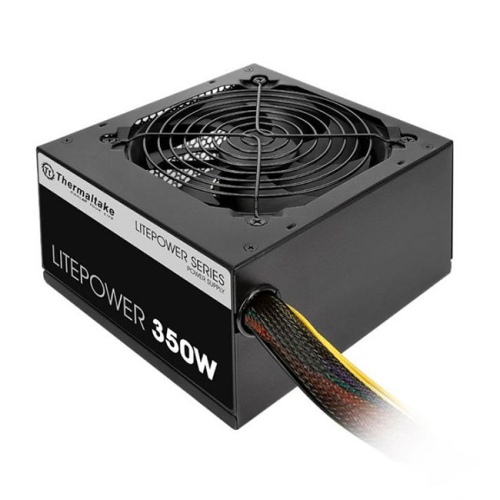

Litepower Series LTP-0350C-F – 350W Non PFC 115V/230V Switchable PSU

Thermaltake Litepower 350W
Incorporating various high-quality components, the new Litepower Series – rated from 350W to 650W – saves energy up to 80% efficiency. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. In addition, the single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Cables with High Flexibility
Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (450mm) guarantees sufficient lengths of cables to the build. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
AC INPUT

Input Voltage: 110V/220V
Input Current: 6A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 16A

13A

26A

0.5A

2.5A
Max Output Power

90W

312W

6W

12.5W

Total Power

350W


Подробная информация
P/N LTP-0350C-F
watts 350W
RGB вентилятор Нет
Форм фактор ATX
Модель LTP-350NL2NK
Тип ATX 12V 2.3
Max. Output Capacity 350W
ЦВЕТ Black
Dimension ( W / H / D ) 150mm x 86mm x 140mm
PFC (Power Factor Correction) W/O PFC
Power Good Signal 100-500 msec.
Hold Up Time >16msec
Input Current 6A
Input Frequency Range 50Hz - 60Hz
Input Voltage 110V / 220V
Operating Temperature +5℃ to +35℃
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40℃ to +55℃
Storage Humidity 10% to 95%, non-condensing
СИСТЕМА ОХЛАЖДЕНИЯ 120mm Fan: 1600±10% RPM
MTBF 100,000 hrs minimum
Safety Approval CE, TUV SUD, CB, FCC, UL, S-Mark, EAC, BSMI and RCM certified.
