Litepower 450W Litepower 450W Litepower 450W
Litepower 450W

Litepower 450W

Нет в наличии
P/N
LTP-0450C-F
39,99 € (included VAT)

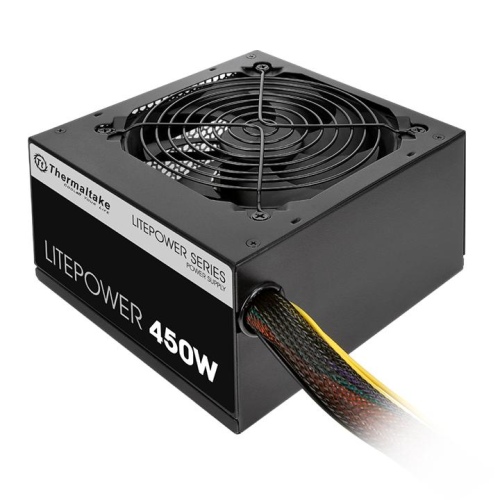

Litepower Series LTP-0450C-F – 450W Non PFC 115V/230V Switchable PSU

Thermaltake Litepower 450W
Incorporating various high-quality components, the new Litepower Series – rated from 350W to 650W – saves energy up to 80% efficiency. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. In addition, the single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Cables with High Flexibility
Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage
Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
AC INPUT

Input Voltage: 110V/220V
Input Current: 8A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 20A

14A

33A

0.5A

2.5A
Max Output Power

100W

396W

6W

12.5W

Total Power

450W


Подробная информация
P/N LTP-0450C-F
watts 450W
RGB вентилятор Нет
Форм фактор ATX
Модель LTP-450NL2NK
Тип ATX 12V 2.3
Max. Output Capacity 450W
ЦВЕТ Black
PFC (Power Factor Correction) W/O PFC
Power Good Signal 100-500 msec.
Hold Up Time >16msec
Input Current 8A
Input Frequency Range 50Hz - 60Hz
Input Voltage 110V / 220V
Operating Temperature +5℃ to +35℃
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40℃ to +55℃
Storage Humidity 10% to 95%, non-condensing
СИСТЕМА ОХЛАЖДЕНИЯ 120mm Fan: 1800±10% RPM
MTBF 100,000 hrs minimum
Safety Approval CE, TUV SUD, CB, FCC, UL, S-Mark, EAC, BSMI and RCM certified.
PCI-E 6+2pin 6+2pin PCI-E Connector x 2
