Litepower Series LTP-0650P-F – 650W APFC Full Range PSU

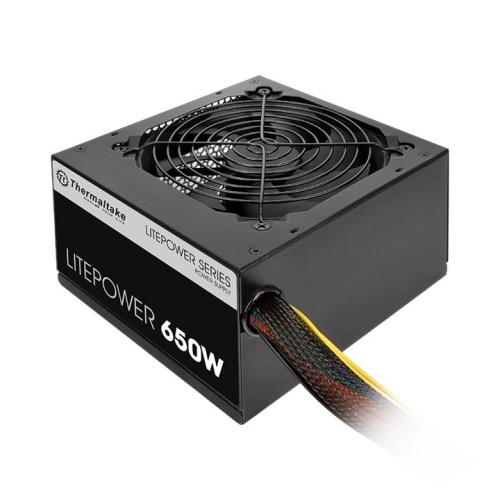

Thermaltake Litepower 650W (Full Range)
Новейшие блоки питания серии Litepower оснащена высококачественными компонентами и имеет эффективность работы до 85%. Идеальный выбор для выполнения ежедневных задач на ПК в режиме нон-стоп. Блок питания имеет единую линию +12В. Встроенный вентилятор эффективно охлаждает все компоненты, работая при этом исключительно тихо.
Доступны модели на 350W, 450W, 550W и 650W.

Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Cables with High Flexibility
Cables with High Flexibility Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
AC INPUT

Input Voltage: 100V-240V
Input Current: 12A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 23A

17A

48A

0.5A

2.5A
Max Output Power

110W

576W

6W

12.5W

Total Power

650W

Подробная информация
P/N LTP-0650P-F
watts 650W
RGB вентилятор Нет
Форм фактор ATX
Модель LTP-650NL2NK
Тип ATX 12V 2.3
Max. Output Capacity 650W
ЦВЕТ Black
Dimension ( W / H / D ) 150mm x 86mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec.
Hold Up Time >16msec
Input Current 12A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V - 240V
Operating Temperature +5℃ to +35℃
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40℃ to +55℃
Storage Humidity 10% to 95%, non-condensing
СИСТЕМА ОХЛАЖДЕНИЯ 120mm Fan: 1800±10% RPM
MTBF 100,000 hrs minimum
Safety Approval CE, TUV SUD, CB, FCC, UL, S-Mark, EAC, BSMI and RCM certified.
PCI-E 6+2pin 6+2pin PCI-E Connector x 2
