Supports the latest ATX 12V V2.3 & EPS 12V standards.

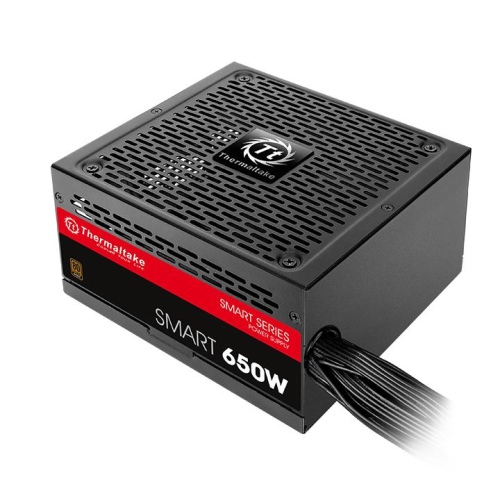

650 Watt Bronze Power Supply:
Most valuable power usage for daily use
Thermaltake introduces the newest in the essence of mainstream systems – the SMART Series Standard PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 550 to 750W that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 fundamental and stable demands.

80% Plus Bronze Certified
80 Plus Bronze certified, offers up to 88% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.


Flat & Low Profile Cable
All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.



Massive and dedicated +12V output
Smart Standard Series is equipped with a pure and powerful single +12V rail to provide the best compatibility for your PC.


Top Quality Japanese made Capacitor
High quality of Japanese made capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

Smart Temperature Control Fan
Large 120mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Подробная информация
P/N SP-650PCBxx
watts 650W
RGB вентилятор Нет
Форм фактор ATX
Модель SP-650AH2NCB-A
Тип ATX 12V v2.4 and EPS v2.92
Max. Output Capacity 650W
Peak Output Capacity 780W
ЦВЕТ Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 80% of full load
Input Current 10A
Input Frequency Range 47Hz -63Hz
Input Voltage 100V-240V~
Operating Temperature 0°C to +40°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20 °C to +70 °C
Storage Humidity 5% to 95%, non-condensing
СИСТЕМА ОХЛАЖДЕНИЯ 140mm Fan: 1800 R.P.M. ± 10%
Efficiency Meet 80 PLUS®Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval UL/CUL/TUV/CE/FCC and BSMI
PCI-E 6+2pin PCI-E 6+2pin X 2
