Smart BX1 SE 750W Smart BX1 SE 750W Smart BX1 SE 750W Smart BX1 SE 750W Smart BX1 SE 750W Smart BX1 SE 750W
Smart BX1 SE 750W

Smart BX1 SE 750W

Нет в наличии
P/N
PS-SPD-0750NNSAB*-2
999 999,00 € (included VAT)
80 PLUS® 230V EU Bronze certified non-modular PSU with an ultra-quiet 120mm cooling fan.
The Smart BX1 SE 750W features low-profile flat black cables, high-quality 105°C main capacitors, and a powerful single +12V rail with DC-to-DC design for stable and precise power delivery.

Smart BX1 SE 750W

Equipped with a high-quality 105°C (221°F) main capacitor, it provides excellent durability, superior stability, and long-term reliability. With comprehensive protections and a 5-year warranty, the Smart BX1 SE offers consistent performance and dependable power for users seeking efficiency and lasting value.

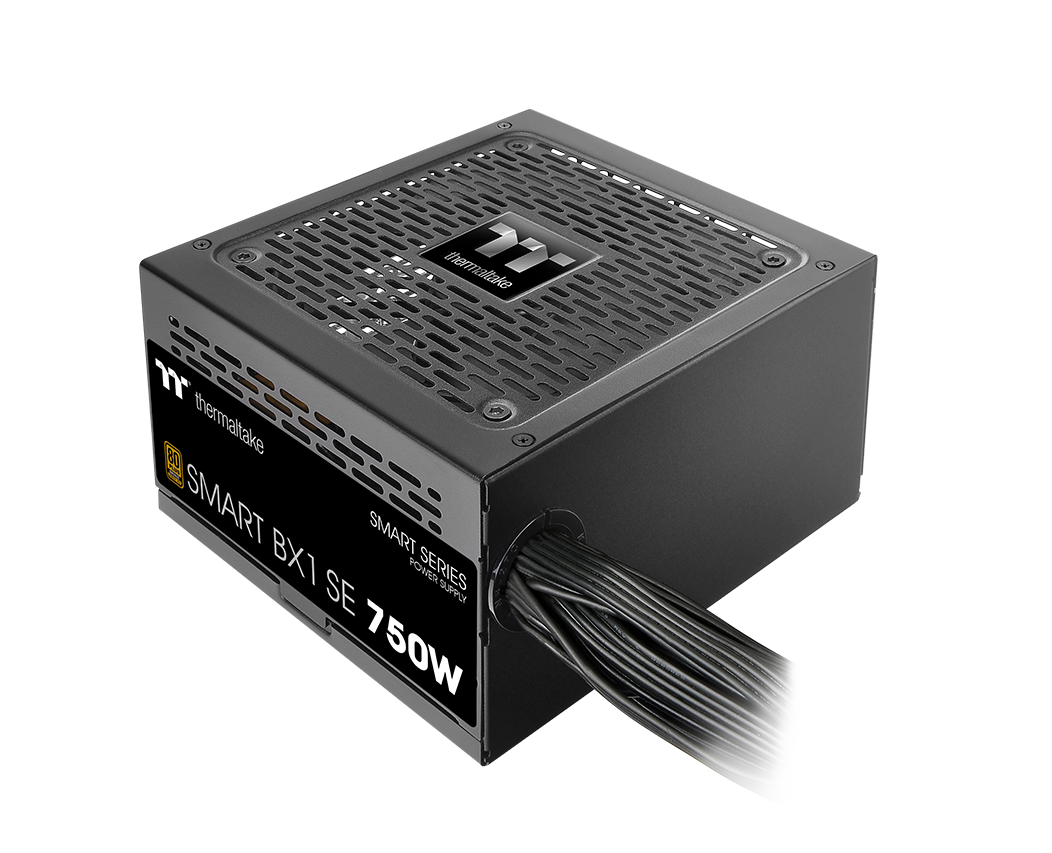

Long-Term Durability with Premium Components

Ultra Quiet 120mm Cooling Fan

Featuring an ultra-quiet 120mm cooling fan with intelligent RPM control to ensure excellent airflow and silent operation under all load conditions.

Next-Gen Ready Power

High amperage single +12V rail design

The Smart BX1 SE series features a powerful single +12V rail and advanced DC-to-DC design, ensuring precise voltage regulation and stable power delivery for all components.

AC INPUT

Input Voltage: 200-240~
Input Current: 10A Max.
Frequency: 50 Hz

DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 18A 18A 62.5A 0.3A 2.5A
Max Output Power 100W 750W 3.6W 12.5W
Total Power 750W

Industry-Grade Safety Protections

Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

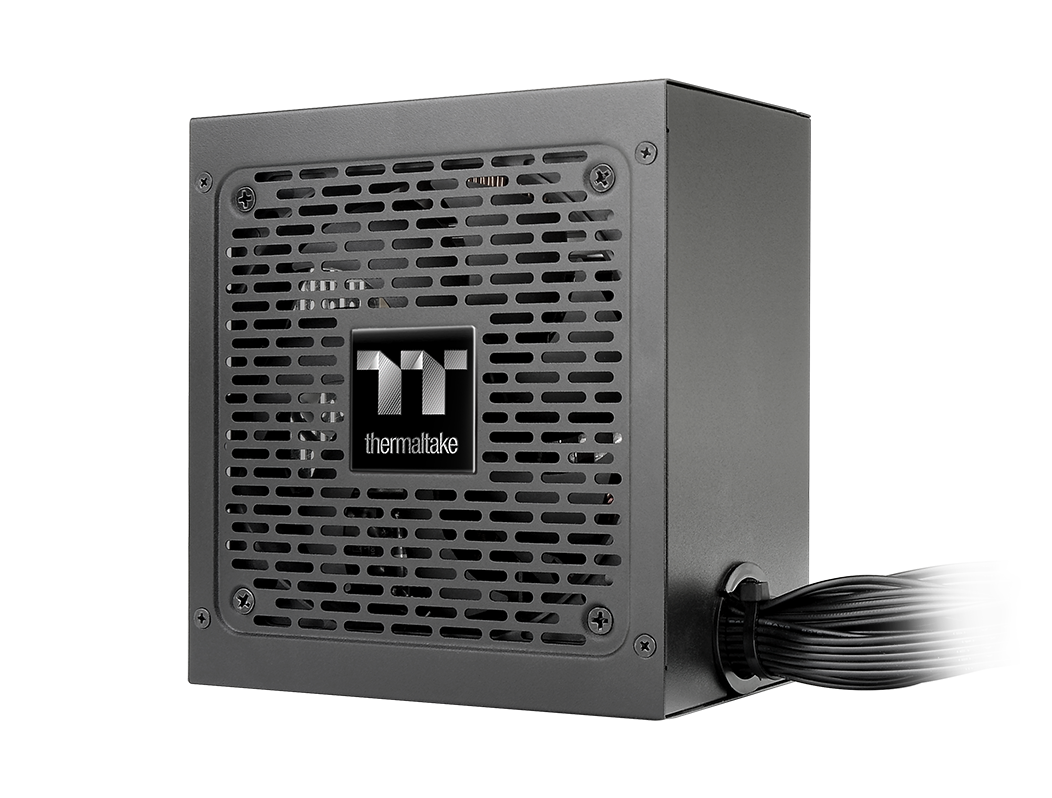

Low-Profile Flat Black Cables

Designed with low-profile flat black cables, the Smart BX1 SE 750W makes cable management easier and helps users create a clean and organized system build. The non-modular design provides all essential connectors for stable power delivery across the motherboard, CPU, and peripherals.

Low-Profile Flat Black Cables
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(20+4Pin)		 X 1 Main Power (20+4Pin) cable illustration X 1 600mm
ATX 12V
(4+4Pin)		 X 2 ATX 12V (4+4Pin) cable illustration X 1 650mm+150mm
PCIe
(6+2Pin)		 X 2 PCIe (12+4Pin) 600W cable illustration X 2 500mm
SATA
(4Pin)		 X 6 SATA (4Pin) cable illustration X 2 500mm+150mm+150mm
Peripheral
(4Pin)		 X 2

80 PLUS® 230V EU Bronze Certified and Intel C6/C7 States Ready

Saving energy through its high efficiency of up to 88% and is certified to 80 PLUS® 230V EU Bronze. It also supports Intel’s C6/C7 power states and ErP standards, ensuring optimized energy savings and system compatibility for all modern processors.

80 PLUS Platinum Certified

Compact Size for Easy Installation

With a compact size of 150mm (W) x 86mm (H) x 140mm (D), the Smart BX1 SE 750W fits easily into most PC cases, making it ideal for both standard and space-efficient builds.

Full Modular Layout with Optimized Airflow
Подробная информация
P/N PS-SPD-0750NNSAB*-2
watts 750W
Модель SPS-750AH2NXB
Max. Output Capacity 750W
ЦВЕТ Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-250 msec
Hold Up Time > 17msec at 80% load
Input Frequency Range 50 Hz
Input Voltage 200-240Vac~
Operating Temperature 5°C to +40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to +55°C
Storage Humidity 10% to 95%, non-condensing
СИСТЕМА ОХЛАЖДЕНИЯ 12cm Hydraulic Bearing Fan
Efficiency 80 PLUS® 230V EU Bronze Certified
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/CB/TUV/LVD/RCM
PCI-E 6+2pin 2
Input current 10A Max.
Protection OCP/OVP/OPP/OTP/UVP/SCP
