Suppressor F31 Power Cover Edition Suppressor F31 Power Cover Edition Suppressor F31 Power Cover Edition Suppressor F31 Power Cover Edition Suppressor F31 Power Cover Edition Suppressor F31 Power Cover Edition
Suppressor F31 Power Cover Edition

Suppressor F31 Power Cover Edition

Нет в наличии
P/N
CA-1E3-00M1WN-02
99,99 € (included VAT)
The new Suppressor F31 Power Cover Edition houses the perfect balance in leading-edge sound reduction and cooling expansion for silent operation with unique sound dampening panels.

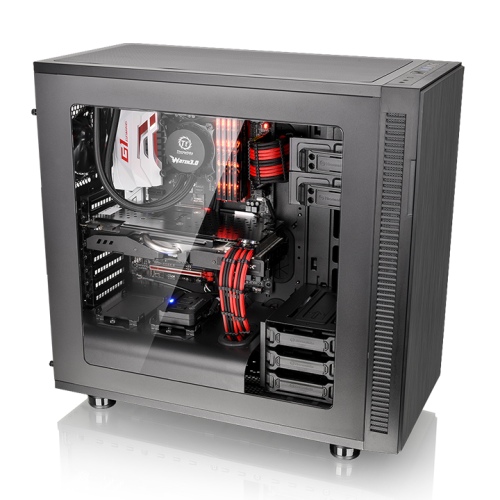

Thermaltake Suppressor F31 Power Cover Edition
The Suppressor F31 mid-tower chassis with power cover design, featuring leading-edge sound reduction panels on all sides, expand your cooling options with removable panels for the perfect balance in silent operation and cooling performance. Supporting a range of motherboard platforms from Mini ITX to ATX solutions, unrivaled liquid cooling expansion and expandability for all high-end GPU solutions users can expect an enthusiast built design they can trust.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Power Cover Design
Power cover design is one of the Suppressor Power Cover Edition unique features. The entire bottom area can be used to reorganize unused cables, which makes for a tidy-looking system. Furthermore, the PSU cover can hold two additional 2.5” HDD drive bays.



Tool-Free Installation
Innovative 5.25” and 3.5” tool-free drive bay design minimizes installation/removal with hidden drive bays on the back panel to provide a clean look and improved expansion for liquid cooling components. The “2 + 3” drive bay with modular drive racks allows multiple SSD/HDD devices for improved storage capacity.




Fully Modular Design
With removable “2 + 3” drive racks, gain more for custom cooling components to freely interchange SSD/HDD cage sections for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.

*Hidden drive bay allows expandability for more liquid cooling and still allows data drive mounting for a clean look. Cable management with maximum 50mm in width.

Modular Sound-damping Design
Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F31 Power Cover Edition to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.


Optimized Silent Operation
For acoustic test, Suppressor F31 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect. Preinstalled sound-damping foams of Suppressor F31 reduce noise and acoustic levels within the entire chassis for extreme silent purpose.
Suppressor F31 Acoustic Test Result:

Optimized Cooling Performance
Thermal imaging camera was applied for the temperature test of the chassis. After the removal of all sound-damping covers from the top panel, Suppressor F31 Power Cover Edition dissipates heat more efficiently. The temperature decreases 2.2°C/35.9°F without any sound damping covers.

Advanced Ventilation
The Suppressor F31 Power Cover Edition delivers outstanding cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, air intake is with a single 120mm front fan built-in and includes options for up to (3) 120mm or 140mm front fans combined with (2) bottom mount 140mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 120mm fan and (3) sectional top mounts to manage proper air flow in and out.



High-End Complete Solution
The Thermaltake Suppressor F31 Power Cover Edition enables users to build a complete high-end system that supports up to triple 120mm, double 140mm liquid cooling radiators or up to 200mm case fans. With extended graphic card support (up to 360mm), the Suppressor F31 Power Cover Edition simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Most importantly, the Suppressor F31 Power Cover Edition delivers outstanding cooling efficiency, reduced exterior noise and dust signatures for ideal silent operation.




Suppressor F31 Power Cover Edition Radiator Supporting List
Radiator Compatibility
  120
mm
240
mm
360
mm
140
mm
280
mm
Front * * * * *
Top * * * * *
Rear *     *
Bottom *     *

Water 3.0 Compatibility List
  Ultimate Extreme/ Extreme S Pro Performer/ Performer C
Front
Top * * * *
Rear     * *
Bottom


Suppressor F31 Power Cover Edition Fan Supporting List
Fan Compatibility List
  120mm 140mm 200mm
Front 2 2 1
Top 3 3 2
Rear 1 1 -
Bottom 2 2 -

Thermaltake Compatible Fan
  120mm 140mm 200mm
Pure Fan Series * * *
Luna Fan Series * * *
Riing Fan Series * *
Подробная информация
P/N CA-1E3-00M1WN-02
Серия Suppressor
ТИП КЕОРПУСА Mid Tower
РАЗМЕР (В x Ш x Г) 497 x 250 x 515 mm (19.5 x 9.8 x 20.3 inch)
ВЕС НЕТТО 9.7 kg / 21.3 lb
БОКОВАЯ ПАНЕЛЬ Transparent Window
ЦВЕТ Exterior & Interior : Black
МАТЕРИАЛ SPCC
СИСТЕМА ОХЛАЖДЕНИЯ Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
УСТРОЙСТВА ХРАНЕНИЯ -Accessible:
2 x 5.25’’
-Hidden:
3 x 3.5’’ or 2.5’’ (HDD Cage)
2 x 2.5’’ (With Power Cover)
СЛОТЫ РАСШИРЕНИЯ 8
МАТЕРИНСКИЕ ПЛАТЫ 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
ПОРТЫ ВХОДА/ВЫХОДА USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
БП Standard PS2 PSU (optional)
ПОДДЕРЖКА ВЕНТИЛЯТОРВ Front:
2 x 120mm , 2 x 140mm , 1 x 200mm
Top:
3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 120mm , 2 x 140mm
ПОДДЕРЖКА РАДИАТОРОВ Front:
1 x 360mm , 1 x 280mm
Top:
1 x 360mm , 1 x 280mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
1 x 120mm , 1 x 140mm
ОГРАНИЧЕНИЯ CPU cooler height limitation:
180mm
VGA length limitation:
278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation:
180mm (With One Bottom Fan)
220mm (Without Bottom Fan)

User Manual

  • Имя файла
  • Описание
  • Размер
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 7.2 MB
  • 2016-01-12
