Specifically designed for AMD Ryzen Threadripper CPUs
TOUGHAIR TRX40 CPU Cooler features an extended copper base for 100% CPU coverage, which maximizes heat dissipation and provides ultimate cooling performance with up to 280W TDP.
Compatible with: AMD SP6, sTR5, sWRX8, sTRX4, sTR4, SP3
Enhanced 140 mm High Static Pressure Fan
TOUGHAIR TRX40 leverages the TOUGHFAN 14 design, which boosts the fan speed up to 2000 RPM. It ensures powerful cooling performance for any kind of Threadripper CPU.
Asymmetric Fin Structure
The fins of the TOUGHAIR CPU Coolers are designed with an asymmetric fin structure, which allows larger air intake through the fins. It lowers the air turbulence and straightens out the airflow in order to accomplish superb heat dispersion.

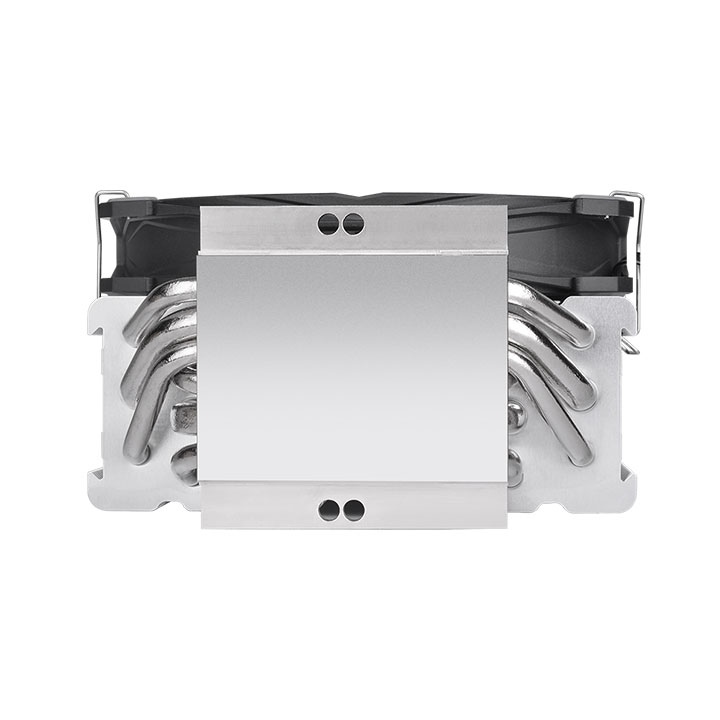

High-performance U-shape Copper Heat Pipes and Extended Chopper Base
TOUGHAIR TRX40 features 4 x Ø6mm and 2 x Ø8mm heat pipes, which provides perfect heat circulation for better CPU cooling performance.
Combined with the extended copper base, TOUGHAIR TRX40 could help dissipate as much heat from the CPU as possible.
Non-interference Design
The overall design of the TOUGHAIR TRX40 is compact and powerful, and it wont interfere with your RAM on the TR40, TRX40 and WRX80 motherboards.
| P/N | CL-P095-PL14BL-A |
|---|---|
| Compatibility | AMD SP6, sTR5, sWRX8, sTRX4, sTR4, SP3 (CPU Socket) |
| Dimensions | 140 x 78 x 160 mm ( L x W x H ) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Ø6mm x 4 pcs Ø8mm x 2 pcs |
| Fan Dimension | 140 x 140 x 25 mm ( L x W x H) |
| Fan quantity | 1 pcs |
| Fan Speed | PWM 500 ~ 2000 RPM With L.N.C PWM 400~1400 RPM |
| Rated Voltage | 12V |
| Start Voltage | 6V |
| Rated Current | 0.44 A |
| Power Input | 5.28 W (one fan ) |
| Air Flow | 119.1 CFM (one fan ) With L.N.C 83.29 CFM |
| Static Pressure | 3.54 mm-H2O (one fan) With L.N.C 2.1 mm-H2O |
| Acoustical Noise | 34.5 dB-A With L.N.C 26.4 dB-A |
| Life time/Fan Life time | 40,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 280 W |
