TOUGHFAN EX 140 ARGB Sync PC Cooling Fan - White (3-Fan Pack)
Thermaltake
TOUGHFAN EX ARGB Sync White PC Cooling Fan

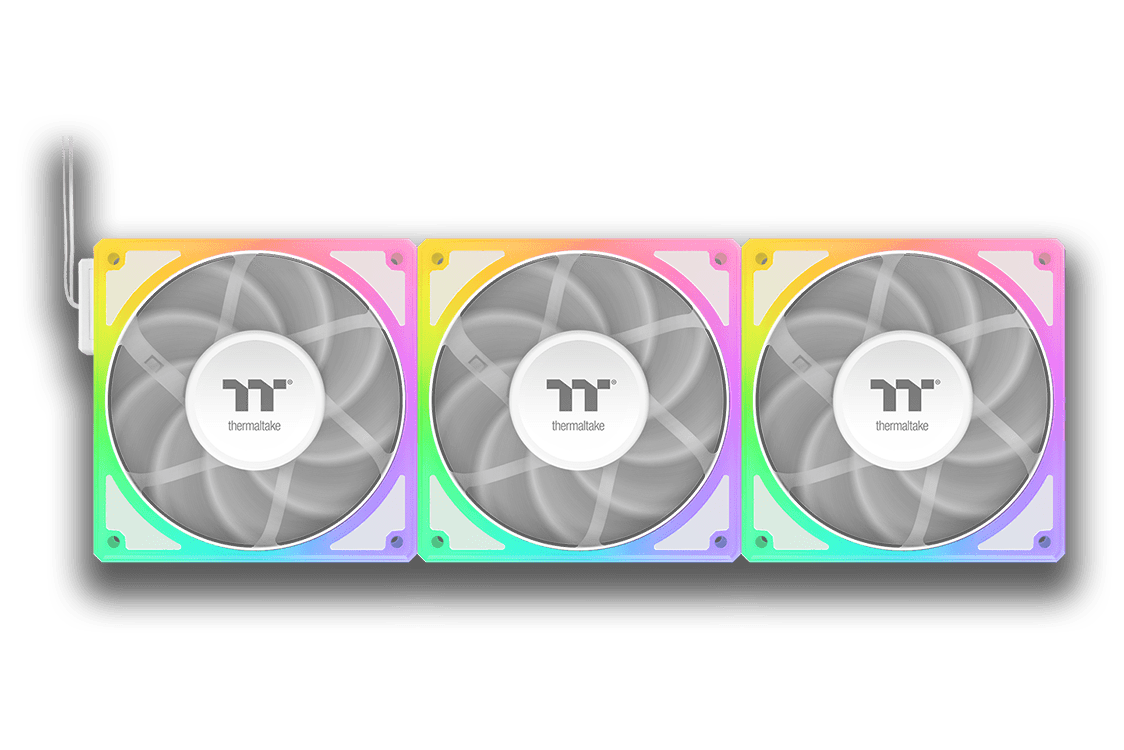

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

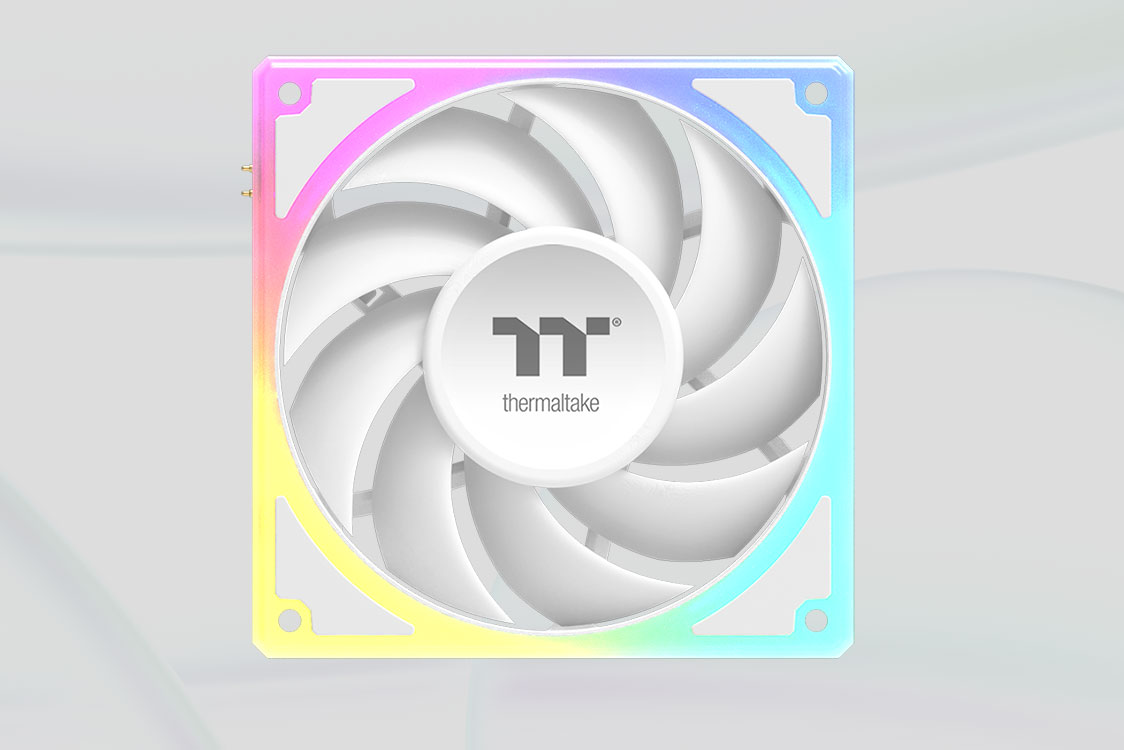

Luminous Fan Frame with Style
The TOUGHFAN EX ARGB Sync White brings a new level of aesthetics to the magnetic-connection fan collection. It features a distinctive luminous fan frame design that delivers dynamic RGB lighting on the front, back, and non-magnetic connector sides, creating a striking visual for your PC build.
Specially Engineered Fan Blade
TOUGHFAN EX ARGB Sync White incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.
Easily Personalize Lighting Effects
Featuring addressable LEDs, the TOUGHFAN EX ARGB Sync White fans provide great coverage of 16.8 million colors. You can customize stunning lighting effects via motherboard sync software from ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK.
Note: This product requires motherboard sync for ARGB lighting effects
Синхронизация подсветки с материнской платой
В зависимости от используемой материнской платы, управление подсветкой может осуществляться одной из фирменных утилит: ASUS Armoury Crate, GIGABYTE RGB Fusion, MSI CENTER и ASRock Polychrome RGB. Для реализации данной опции, материнская плата должна иметь 3-х контактный интерфейс для подключения адресных светодиодных лент с напряжением питания 5В. Для получения более подробной информации, пожалуйста, посетите веб-сайт интересующей вас материнской платы.
| Категория | Внимание |
| ARGB корпуса, ARGB вентиляторы, ARGB готовые AIO системы. |
|
| RGB память, водоблоки для VGA, распределительные панели СЖО. |
|
| P/N | CL-F213-PL14SW-A |
|---|---|
| Fan Dimension | 140 x 140 x 25 mm |
| Interface | 2510 – 4 Pin 5V ARGB header-3 Pin |
| Fan Started Voltage | 5 V |
| Fan Rated Voltage | 12 V &5V |
| Rated Current | 12V: 0.3A / 5V: 0.4A (one fan) |
| Power Input | 12V: 3.6 W / 5V: 2 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure | 3.04 mm-H2O (one fan) |
| Air Flow | 94.43 CFM (one fan) |
| Noise | 35.3 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
User Manual
- Имя файла
- Описание
- Размер
- Version
- Release Date
-
TOUGHFAN EX ARGB Sync PC Cooling Fan (3-Fan Pack)
- Manual
- 2025-06-12
