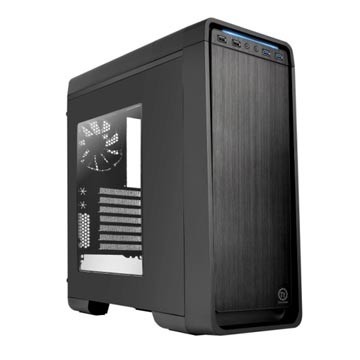

| P/N | VP700M1W2N |
|---|---|
| Серия | Другое |
| Model | VP700M1W2N |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 500x 206 x 520 mm (19.7 x 8.1 x 20.5 inch) |
| Net Weight | 7.3Kg / 16.1 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SECC |
| Cooling System | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) 120 x 120 x 25 mm fan (Optional) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) : (Optional) 120 x 120 x 25 mm fan x 2 or 140 x 140 x 25 mm fan Bottom (intake) : (Optional) 120 x 120 x 25 mm fan |
| Drive Bays -Accessible -Hidden |
- Accessible : 3 x 5.25’’, 1 x 3.5’’ (Converted from one 5.25” drive bay) - Hidden : 6 x 3.5’’ or 2.5’’ - Docking : 1 x 3.5” or 1 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (Optional) |
| Radiator Support | Top: 1 x 120mm or 2 x 120mm |
| Другой | CPU cooler height limitation: 155mm VGA length limitation: 290mm(with HDD rack) 410mm(without HDD rack) |
Pro
+ Dust filter for the front, top and bottom
+ Two 120 mm fans included
+ Window in the side panel
+ Hot-swap system
+ HDD cage removable
eTeknix says: This is a great chassis and it offers plenty of style and features for those looking to build a mid to high-end system, but it looks lend well to those who want anything from a cool gaming machine to a stylish work PC. It’s clear that Thermaltake have made a great start with the S31 and we can’t wait to see what else they have to offer from the Urban range.
<More>
Overall, the Urban S31 mid tower case from Thermaltake is an excellent chassis that is build out of quality materials. The case features a simple styling that would be preferred by many people without skimping on the features most people enjoy. At a price point of $89, the quality materials, tool-free features, mainstream connectivity, and HDD dock provide an excellent value. The HDD dock, in particular, is a nice feature if you tend to work on a lot of people's computers systems, so you don’t have to pop the side panel to copy files.
