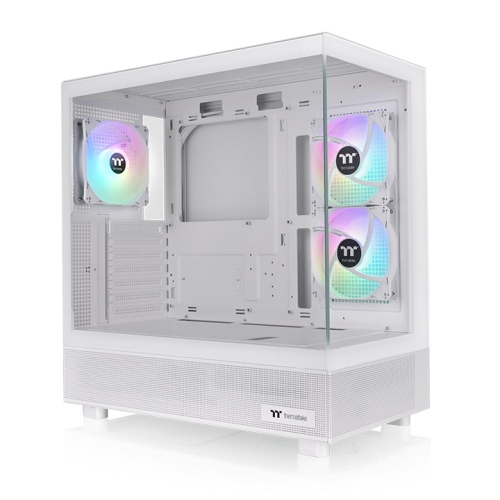

Built for amazing viewing, the View 270 Plus TG ARGB Snow Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus TG ARGB Snow Mid Tower Chassis.
- The image is for reference only.
The View 270 Plus TG ARGB Snow Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- The image is for reference only.
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 Plus TG ARGB Snow Mid Tower Chassis.
- The image is for reference only.
The View 270 Plus TG ARGB Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
The View 270 Plus TG ARGB Snow Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
CPU Cooler
Max height 180mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)
PSU
Max length220mm (with HDD Cage)
VGA
Length limitation420mm
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | 2 |
| Right(M/B Side) | 2 | - |
| Rear | 1 | 1 |
| Power Cover | 3 | - |
Синхронизация подсветки с материнской платой
В зависимости от используемой материнской платы, управление подсветкой может осуществляться одной из фирменных утилит: ASUS Armoury Crate, GIGABYTE RGB Fusion, MSI CENTER и ASRock Polychrome RGB. Для реализации данной опции, материнская плата должна иметь 3-х контактный интерфейс для подключения адресных светодиодных лент с напряжением питания 5В. Для получения более подробной информации, пожалуйста, посетите веб-сайт интересующей вас материнской платы.
| Категория | Внимание |
| ARGB корпуса, ARGB вентиляторы, ARGB готовые AIO системы. |
|
| RGB память, водоблоки для VGA, распределительные панели СЖО. |
|
| P/N | CA-1Y7-00M6WN-01 |
|---|---|
| Серия | View |
| ТИП КЕОРПУСА | Mid Tower |
| РАЗМЕР (В x Ш x Г) | 456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
| ВЕС НЕТТО | 6.35 kg / 14 lbs. |
| БОКОВАЯ ПАНЕЛЬ | Tempered Glass x 2 |
| ЦВЕТ | White |
| МАТЕРИАЛ | SPCC |
| СИСТЕМА ОХЛАЖДЕНИЯ | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| СЛОТЫ РАСШИРЕНИЯ | 7 |
| МАТЕРИНСКИЕ ПЛАТЫ | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| ПОРТЫ ВХОДА/ВЫХОДА | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| БП | Standard PS2 PSU (optional) |
| ПОДДЕРЖКА ВЕНТИЛЯТОРВ | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| ПОДДЕРЖКА РАДИАТОРОВ | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| ОГРАНИЧЕНИЯ | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
